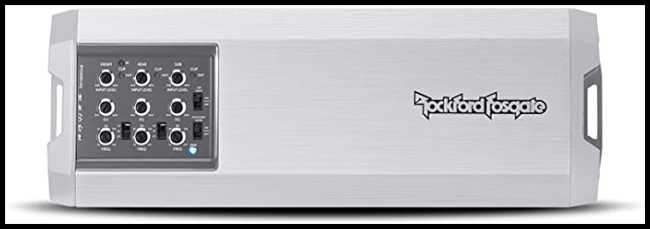

Power Marine 1000 Watt Class-ad 5-Channel Amplifier

The TM1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit.

Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. Other features include a conformal coated circuit board for protection against element exposure and compatibility with our PLC2 level remote control for the sub channel.

•  Rockford Fosgate proprietary Class AD technology
•  Class bd Technology
•  Differential inputs with high level auto turn-on feature
•  AP remote out feature when using high level inputs
•  4/2 Ohm Multi-Impedance Constant Power
•  2013 PLC2 remote ready
•  C.L.E.A.N. input/output clip detection and indicator LEDs
•  Top mounted controls
•  Dual fan cooled
•  Real time thermal sensing
•  Dual extruded heat sinks
•  All other Rockford protection schemes
•  CEA-2006 and CE Compliant
•  Discrete surface mount technology
•  Marine grade two part epoxy coating on circuit boards
•  2-Year Warranty

Rated Power (RMS Continuous Power)
100 Watts x 4 + 400 Watts x 1 @ 4Ω
100 Watts x 4 + 600 Watts x 1 @ 2Ω
N/A + 600 Watts x 1 @ 1Ω
200 Watts x 2 @ 4Ω Bridged + N/A
Dynamic Power (PVC/PowerCube®)
138 Watts x 4 + 487 Watts x 1 @ 4Ω
118 Watts x 4 + 748 Watts x 1 @ 2Ω
N/A + 663 Watts x 1 @ 1Ω
225 Watts x 2 @ 4Ω Bridged + N/A
Total Power (Sum of Rated Power)    1000 Watts
Number of Channels    5
Bridgeable    Yes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
CEA-2006 Compliant
CEA-2006 Power Rating
100W x 4 + 400W x 1 @ 4Ω
≤1.0% THD+N
Circuit Topology Class    Class AD + Class BD (Sub)
Speaker Wire Gauge    Front/Rear: 16 AWG
Power Wire Gauge    4 AWG
Operating Voltage    9-16 VDC
Crossover Controls
High-Pass: 50Hz - 250Hz @ 12dB/Octave
Low-Pass: 50Hz - 250Hz @ 12dB/Octave
Subwoofer: 50Hz - 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters
Frequency Response    20Hz - 20kHz +/-1dB
Input Sensitivity    150 mV - 12 V
Signal Input
Front High/Low Input: 4-Pin harness
Rear High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Power Input Connector
Detachable Compression Terminal
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
Heat Sink Type    Extruded Aluminum
Cooling    Dual Fan Cooled
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Efficiency (average)    >85%
Tone Controls
Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
Front/Rear Bass: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45Hz
Remote Controls    Optional PLC2 provides Punch Level Control
Dimensions (H x W x D)
1.6 x 4.3 x 12 (in.)
Shipping Weight
5 Lbs. (2.27 Kg.)
