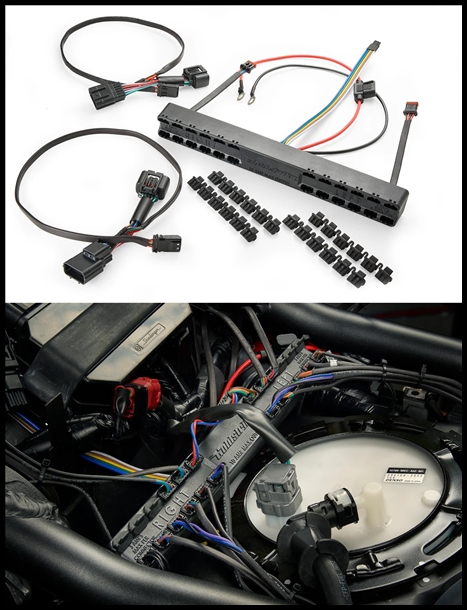

Easily install up to 12 sets of Goldstrike lighting products with one unit. Routing all the accessory wiring to a central Plug-n-Play location makes for a well-organized area that reduces the chances of electrical failure due to pinched wires under the seat. If you have more than 12 lighting kits on your motorcycle just simply add our (48001 Y Splitter Harness) to expand to your lighting needs.
The entire Goldstrike Lighting Distribution Block is isolated from the can-bus system used on Gold Wings. Wire trailer lights or other 12 volt lighting accessories directly to this block using the integrated five-wire auxiliary harness.
Have other lighting systems you want to plug into the Lighting Distribution Block, we have that covered also. Simply add one of our (wiring adapters) and easily plug other manufactures light right in.
Technical Information
Key Features
• Easy to install
• Plugs directly into the main harness, no splicing
• Controls run-turn-brake functions
• 24 individual power ports, 12 right and 12 left
• Easily expandable beyond the 24 ports with the (48001 Y-Splitter)
• Isolated power protection
• Five wire output for trailer harness (10 Amp max)
• Strong ABS construction
• Rubber plugs protect unused ports
• 30 Amp total power capability
• 3 Amps per port max
• Pre installed ring terminals for secure battery connection
• Heavy duty mechanical relays
• Automatic breaker circuit protection on every port
• Completely sealed circuits, relays, and breakers keeping them safe from whatever you or mother nature throws at it
• Goldstrike and Twinart lighting accessories plug directly into distribution block
• Wire adapters available (sold separately) for Kuryakyn and Pathfinder lighting kits. Also we offer a universal wire adapter to connect most 12v lighting accessories. (See all the adapters)
Included With Kit
• Lighting Distribution Block
• Plug-N-Play Wire Harness
• Wire Adapter Harness (2)
Fitment
• 2018-Current Model Gold Wing
• 2018-Current Model Gold Wing DCT
• 2018-Current Model Gold Wing Tour
• 2018-Current Model Gold Wing Tour DCT
• 2018-Current Model Gold Wing Tour DCT Airbag
Click Here For Instructions
Product ID GOLDSTRIKE-48010
