This very versatile kit allows you to mount a CB antenna to almost any vertical-flat trunk or saddlebag surface.

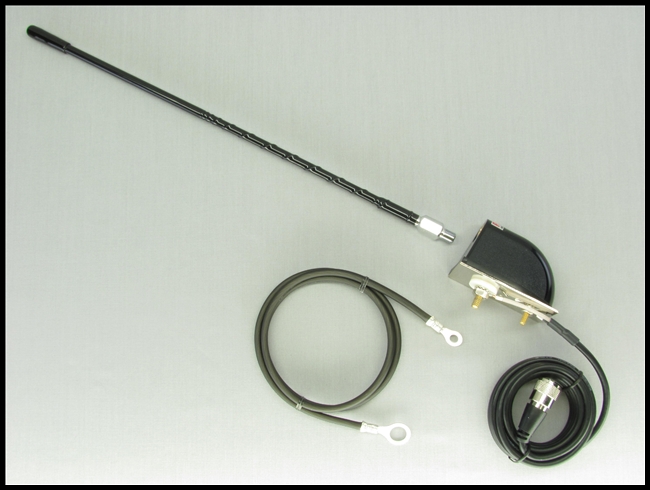

This trunk mount style CB antenna kit includes a black right-angle thru-panel mount assembly, black fiberglass antenna staff in your choice of length, frame attachment grounding wire, antenna connection cable with connector for the JMCB-2003, mounting hardware.

DIMENSIONS

Mounting Surface Area: 3.125" (79mm) x 1.675" (43mm)

Upper Mounting Hole Diameter: 13/32" (10mm)

Lower Mounting Hole Diameter: 13/64" (5mm)

Mounting Holes, Center to Center: 1.50" (38mm)

Outward Protrusion From Mounting Surface: 1.88" (48mm)

Maximum Mounting Surface Thickness: 0.28" (7mm)
SIE CBA TM  PL
